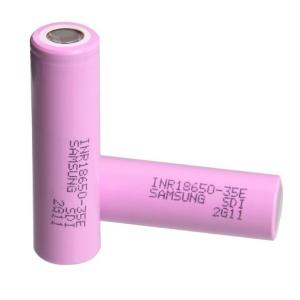

Samsung 35E 18650 Battery 3500mAh 8A 3.6V Cylindrical Lithium Ion Cell INR18650-35E

Brand Name : UNEMETECH/Samsung

Model Number : INR18650-35E

Certification : CE, CB, IEC62133, UL1642...

Place of Origin : China, Korea and Malaysia

MOQ : 100PCS

Price : 1.5-3.0USD/PCS

Payment Terms : T/T , WorldFirst , Payoneer , PingPong , Paypal , Alipay , Western Union , ...

Supply Ability : 500,000.00 Pieces Per Day

Delivery Time : 5-25 days

Packaging Details : 100 cells per box, 2 boxes into a case, totally 200 cells

Battery Type : Cylindrical Lithium ion Cell

Standard Discharge Capacity : Min 3350mAh

Nominal Voltage : 3.6V

Charging Voltage : 4.2V

Discharge Cut-off Voltage : 2.65V

Max Charge Current : 2000mA(not for cycle life)

Max Discharge Current : 8000mA (for continuous discharge) 13000mA (not for continuous discharge)

Weight : 50.0g

Contact Now


Samsung 35E 18650 3500mAh 8A Battery 3.6V Cylindrical Lithium Ion Cell INR18650-35E

Samsung INR18650-35E 3500mAh Advantages

1. High Capacity: With a capacity of 3400mAh, it offers significant energy storage, ideal for devices requiring extended use.
2. Moderate Discharge Rate: Supports continuous discharge rates up to 8A, making it suitable for a variety of applications, including mid-drain devices.
3. Stable Voltage: Operates at a nominal voltage of 3.6V, ensuring consistent power delivery across different devices.
4. Long Cycle Life: Designed to withstand many charge and discharge cycles, enhancing overall durability and lifespan.
5. Safety Features: Includes built-in protections against overcharging, overheating, and short circuits, ensuring safe operation.
6. Versatile Applications: Commonly used in laptops, flashlights, and other portable electronics due to its reliability and performance.
7. Low Self-Discharge Rate: Retains charge effectively when not in use, making it suitable for backup power needs.

Samsung INR18650-35E 3500mAh Nominal Specifications

Model INR18650-35E
Standard Discharge Capacity

Min 3350mAh

- Charge : 0.5C(1,700mA), 4.2V, 0.02C(68mA) cut-off @RT
- Discharge : 0.2C(680mA), 2.65V cut-off @RT
*1C=3,400mA
Nominal Voltage 3.6V
Charging Voltage 4.2V
Charging Current Standard Charge: 1700mA
For cycle life: 1020mA
Discharge Cut-off Voltage 2.65V
Max Discharge Current

8000mA (for continuous discharge)

13000mA (not for continuous discharge)

Operating Temperature
(surface temperature)

 Charge, 0°C ~ 45°C
Discharge, -10°C~60°C
Weight 50.0g max
Cell Dimension Height: 65.25mm; Diameter: 18.55mm
Storage Temperature

1 year : -20~25°C (1*)
3 months : -20~45°C (1*)
1 month : -20~60°C (1*)

Warranty 12 months
Cycle Life
 Each cycle is an interval between the charge (charge current 1,020mA) with 100mA cut-off and the discharge (discharge current 3,400mA) with 2.65V cut-off.
Capacity after 500cycles.
Capacity ≥ 2,010mAh (60% of Standard Capacity)
Samsung INR18650-35E.pdf

Outline Dimensions:
Samsung 35E 18650 Battery 3500mAh 8A 3.6V Cylindrical Lithium Ion Cell INR18650-35E

Samsung 35E 18650 Battery 3500mAh 8A 3.6V Cylindrical Lithium Ion Cell INR18650-35EFig 2. Package Drawing


INR18650-35E 3500mAh Applications

High power cordless vacuum cleaner, Electric cigarette, Electric scooter, High power home Appliances, Power Tools...

Samsung 35E 18650 Battery 3500mAh 8A 3.6V Cylindrical Lithium Ion Cell INR18650-35E
